Evaporated-reduction settings
Evaporated-reduction setting which is intended for reception from liquefied gas of gaseous fraction of propan butane mixture and its submissions on torches bubble to the furnace are started in manufacture, providing thus necessary pressure and the charge. A kind of climatic modification У1 ГОСТ 15150.
Example of record of a designation of installation испарительной at its order:
ТУ У 28.2-04601469-046:2006
Technical Characteristics:
| Environment pressure, МPа (кgс/сm2): |
| — trumpet space |
0,6 (6) |
| — tube space |
1,6 (16) |
| Pressure settlement, МPа (кgс/сm2) |
1,6 (16) |
| Pressure trial at hydrotests, МPа (кgс/сm2): |
| — trumpet space |
0,77 (7,7) |
| — tube space |
2,06 (20,6) |
| Productivity, not less than kg/h |
100 |
| Environment temperature,°С,not less |
plus 55 |
| Environment: |
| — trumpet space |
water |
| — tube space |
liquefied carbureted hydrogen gas |
Overall dimensions, not over, mm:
— length
— width
— height |
2300 ±10%;
2000 ±10%;
1480 ±10%. |
| № |

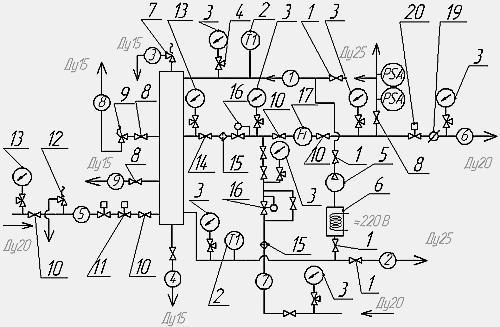

Name of a line |
Conventional passage, Dcon., mm |
Conventional pressure, Rcon |
| 1 |
Heat-carrier intake |
25 |
0,6 |
| 2 |
Heat-carrier discharge |
25 |
0,6 |
| 3 |
Bleeding (heat-carrier) |
15 |
0,69 |
| 4 |
Drainage (heat-carrier) |
15 |
0,6 |
| 5 |
Intake СУГ (Ж/Ф) |
20 |
1,6 |
| 6 |
Discharge СУГ (П/Ф) |
20 |
0,59 |
| 7 |
Intake СУГ (п/o) from the tank |
15 |
1,6 |
| 8 |
Bleeding СУГ (П/Ф) |
15 |
1,6 |
| 9 |
Drainage СУГ (Ж/Ф) |
15 |
1,6 | |
