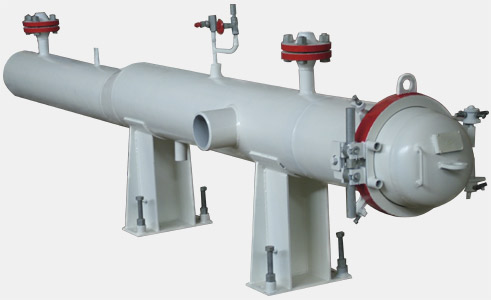

Scraper Pig Injecting and Receiving Chambers

The chambers are intended for starting (acceptance) of purification means and means for diagnostics of oil and gas pipelines.
They are manufactured in climatic versions У and ХЛ.
When the chambers are manufactured in the modular version, they have the following delivery set:
— device for reservation and extraction of current means;
— console crane;
— service platforms and other equipment required for complex servicing.

Technical Characteristics:

Chambers for starting and acceptance of purification means and diagnostics of oil and gas pipelines
Diameter, mm 100, 150, 200, 250, 300, 350, 400, 500, 700, 800, 1000, 1200, 1400
Pressure, MPa till 8,0

Fast end valves for oil and gas pipelines
Diameter, mm 100, 150, 200, 250, 300, 350, 400, 500, 700, 800, 1000, 1200, 1400
Pressure, MPa till 8,0
